High Voltage Silicone Insulated Wire with 1000V Rated Voltage and Big Current for Energy Storage Systems
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| İletken malzeme | Bakır | Yalıtım malzemesi | Lastik |
|---|---|---|---|
| İletken tipi | Mahsur | Nominal Voltaj | 1000V |
| Nominal Sıcaklık | -80c ~+200c | Şef | Kalaylı Tel |
| Yalıtım | Silikon kauçuk | İletken Direnci | 143 Ω/km (26 AWG) |
| Birim uzunluğu | 305/1000 m/ft | İletken çapı | 0.48 mm (26 AWG) |
| Yalıtım kalınlığı | 0.78 mm | Genel çap | 2.04 mm (26 AWG) |
| AWG Boyutları | 26, 24, 22, 20, 18, 16, 14, 12 | Enine kesit | 0.30mm² ila 2.50mm² |
| Telli inşaat | 7/0.16 (26 AWG) | ||
| Vurgulamak | 1000V Rated Voltage Silicone Insulated Wire,-80C to +200C Temperature Range Silicone Rubber Wire,Big Current High Voltage Wire |
||
Ürün Açıklaması

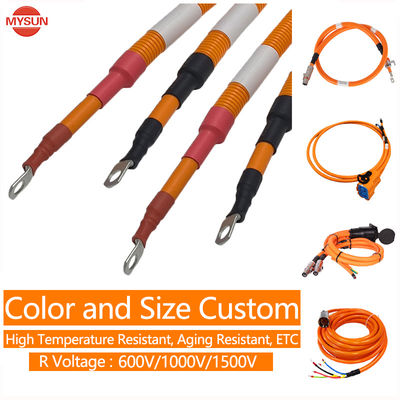

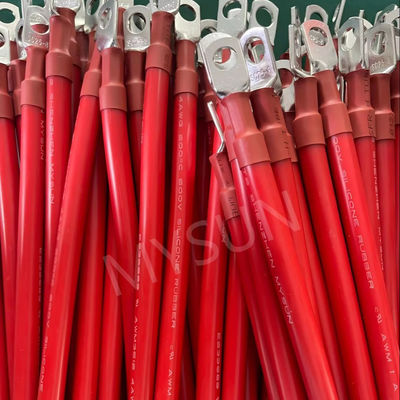

High Voltage Battery Connecting Wire Harness Cable
Big Current Energy Storage Systems Tinned Copper Jacket Silicone Cable
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
UL3135 Technical Specifications
| Conductor | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max.Cond Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | |
| 24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 89.3 | |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | |
| 20 | 26/0.16 | 0.94 | 0.78 | 2.5 | 35.2 | |
| 18 | 41/0.16 | 1.18 | 0.78 | 2.74 | 22.2 | |
| 16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 14 | |
| 14 | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | |
| 12 | 19/0.47 | 2.63 | 0.78 | 3.92 | 5.53 | |
| 0.30mm² | 12/0.18 | 0.71 | 0.78 | 2.27 | 59.78 | |
| 0.50mm² | 20/0.18 | 0.92 | 0.78 | 2.48 | 40.1 | |
| 0.75mm² | 30/0.18 | 1.13 | 0.78 | 2.69 | 26.7 | |
| 1.00mm² | 40/0.18 | 1.31 | 0.78 | 2.87 | 20 | |
| 1.25mm² | 50/0.18 | 1.46 | 0.78 | 3.02 | 14.35 | |
| 2.00mm² | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | |
| 2.50mm² | 50/0.254 | 2.08 | 0.78 | 3.64 | 7.16 |
Product Gallery
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
- Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
