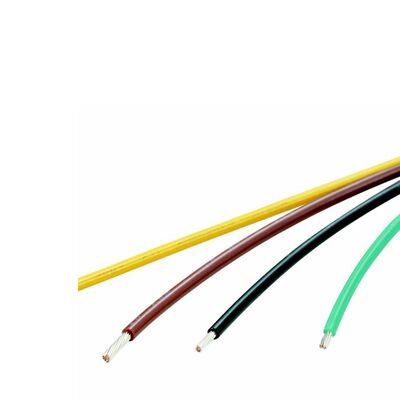

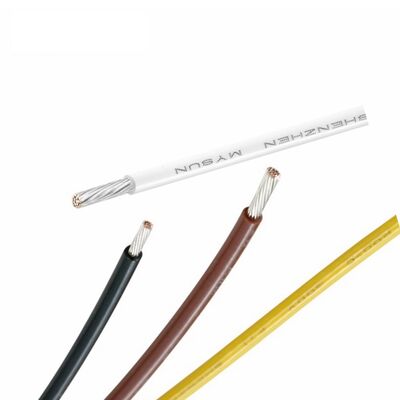

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
Menşe yeri Guangdong, Çin
Marka adı MYSUN
Model numarası UL8298
Min sipariş miktarı 3050

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İletken malzemesi Kalaylı bakır Çap 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG
Yalıtım malzemesi PFA Nominal Gerilim 450V, 750V
İletken Tipi Sağlam Şekil Yuvarlak
Sıcaklık derecesi 250 ℃ İletken Direnci 59,78 Ω/KM (0,34 mm2), 40,1 Ω/KM (0,50 mm2), 26,7 Ω/KM (0,75 mm2), 20 Ω/KM (1,00 mm2), 14,35 Ω/KM (1
Birim uzunluğu 305/1000 m/ft Şef inşaatı 7/0,15 (0,34mm2), 7/0,19 (0,50mm2), 19/0,23 (0,75mm2), 19/0,26 (1,00mm2), 19/0,29 (1,25mm2), 19/0,32
Yalıtım kalınlığı 0,305 mm (0,34-1,50 mm2), 0,350 mm (2,00-2,50 mm2) Tel Çapı 1,36 mm (0,34 mm2), 1,56 mm (0,50 mm2), 1,78 mm (0,75 mm2), 1,91 mm (1,00 mm2), 2,16 mm (1,25 mm2),
İletken çapı 0,75 mm (0,34 mm2), 0,95 mm (0,50 mm2), 1,17 mm (0,75 mm2), 1,31 mm (1,00 mm2), 1,46 mm (1,25 mm2), Voltaj derecesi 450/750V
Yalıtım türü PFA
Vurgulamak

Solid Conductor PFA Wire

,

Round Shape PFA Wire

,

Medical Equipment PFA Wire
Mesaj bırakın
Ürün Açıklaması
UL8298 PFA Wire - High Temperature Sensor Wire
Premium PFA Wire Supplier for Fortune 500 Companies
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 0 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 1
Technical Specifications
UL8298 UL1330 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
Size (mm²) Construction (No.mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
0.34 7/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 7/0.19 0.95 0.305 1.56 40.1 305/1000
0.75 19/0.23 1.17 0.305 1.78 26.7 305/1000
1.00 19/0.26 1.31 0.305 1.91 20 305/1000
1.25 19/0.29 1.46 0.305 2.16 14.35 305/1000
1.50 19/0.32 1.61 0.305 2.31 13.7 305/1000
2.00 19/0.37 1.85 0.350 2.55 8.78 305/1000
2.50 19/0.41 2.06 0.350 2.76 7.16 305/1000
Click Contact us Get the Best Quote
Company Profile
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 2 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 3
Our Product Range
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 4
Applications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 5
Global Clients
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 6
Industry Exhibitions
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 7
Certifications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What We Provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
