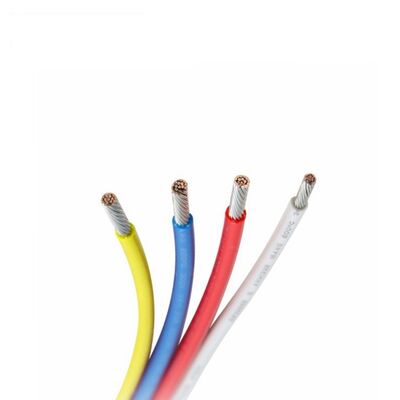

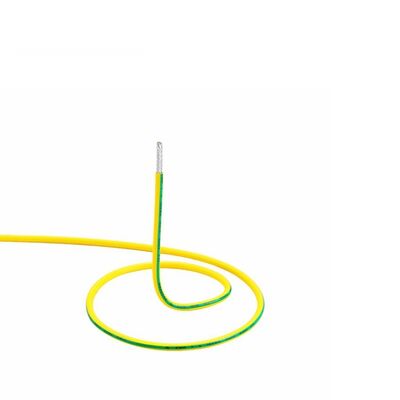

High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment

  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
Menşe yeri Guangdong, Çin
Marka adı MYSUN
Model numarası CQC1111.31-2020/TR/T38296-2019
Min sipariş miktarı 3050

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İletken malzemesi Kalaylı bakır Çap 0,051mm2 ila 16,00mm2
Yalıtım malzemesi Şubat Nominal Gerilim 300 V
İletken Tipi Sağlam Şekil Yuvarlak
Sıcaklık derecesi 150 ° C Tip Yalıtılmış
Birim uzunluğu 305/1000 m/ft Maksimum şef direnci 381 Ω/KM'den 1,17 Ω/KM'ye
Nominal kalınlık 0,230 mm ila 0,510 mm İzolasyon Çapı 0,80 mm ila 6,65 mm
Yapı 7/0,10 ila 133/0,393 Gerilim 300V
Renk tüm renkler
Vurgulamak

High Temperature FEP Wire

,

Tinned Nickel Plated Copper FEP Wire

,

CQC1111.31-2020/GB/T38296-2019 Standard FEP Wire
Mesaj bırakın
Ürün Açıklaması
FEP Wire 300V 150°C Tinned Nickel Plated Copper High Temperature E-200/TX/FEP Wire for UAV Motor Generator
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 0 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 1
Specification
CQC E-150/TX/FEP Wire UL1330 Max.Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 100/328
2.50 19/0.41 2.08 0.380 2.90 7.47 100/328
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Click Contact us Get the Best Quote
Company Profile
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 2 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 3 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 4 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 5
Our Products
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 6 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 7
Application
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 8 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 9
Our Overseas Clients
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 10 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 11
Exhibition
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 12 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 13
Certifications
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 14 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 15
FAQ
1. Who Are We?
We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China.
2. What Can We Provide?
We Can Provide High-temperature Wires And Cables, Silicone Tubing - Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses.
3. Why Choose Us?
A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service.
4. What Certifications Do We Have?
We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
