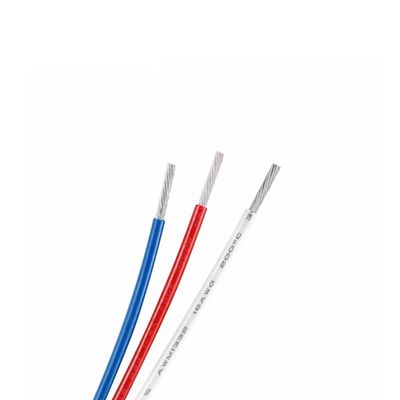

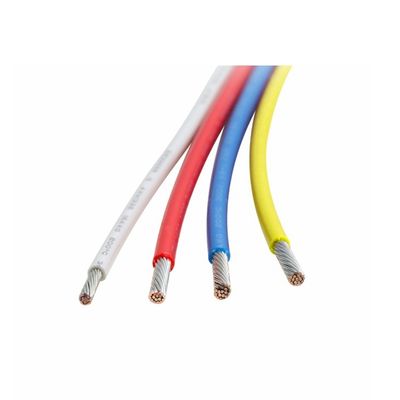

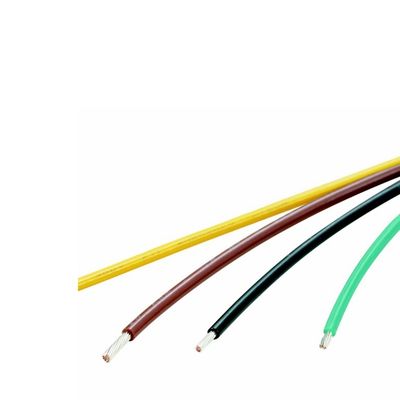

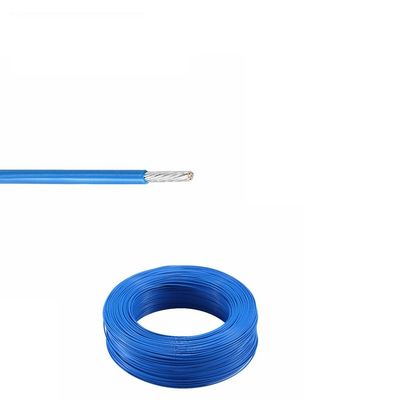

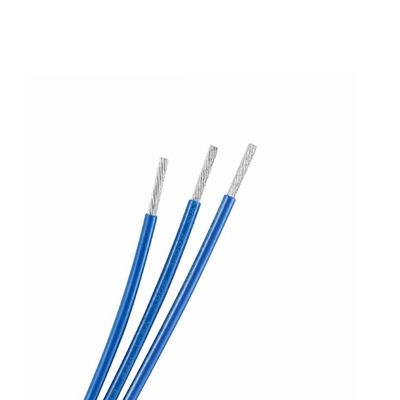

UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas

  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
Menşe yeri Guangdong, Çin
Marka adı MYSUN
Model numarası UL10072
Min sipariş miktarı 3050

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İletken malzemesi Kalaylı bakır Çap 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 6 AWG, 8 AWG, 4 AWG, 2 AWG, 1 AWG, 2
Yalıtım malzemesi Lastik Nominal Gerilim 150V
İletken Tipi Sağlam Şekil Yuvarlak
Tip Yalıtılmış Sıcaklık derecesi 200°C
Yalıtım türü FEP veya PTFE, TFE İletken Seçenekleri Kalaylı Bakır / Gümüş Kaplama Bakır
Birim uzunluğu 305/1000 Maksimum Direnç 563 Ω/KM (32AWG)
Nominal kalınlık 0,350 mm Yapı 7/0,08 (32AWG)
Standart UL758
Vurgulamak

UL10072 High Temperature Wire

,

150V FEP Wire

,

200C TFE Wire
Mesaj bırakın
Ürün Açıklaması
UL10072 FEP or TFE Wire 6-32AWG 150V 200°C Silver Plated Copper High Temperature Wire

Supplies Fortune 500 Companies - Top High Temperature Wire Supplier In China.

UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 0 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 1
Specification
UL10072 UL1330
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
327/0.080.240.3500.74563610/2000
307/0.100.300.3500.80381610/2000
287/0.1270.380.3500.88239610/2000
267/0.160.480.3500.98150610/2000
247/0.200.610.3501.1194.2610/2000
2219/0.150.770.3501.2759.4305/1000
2019/0.190.920.3501.4236.7305/1000
1819/0.2351.190.3501.6923.2305/1000
1619/0.301.490.3501.9914.6305/1000
1419/0.371.850.3502.378.78305/1000
1219/0.472.350.3502.875.64305/1000
1019/0.433.000.3503.553.55305/1000
937/0.4753.350.5104.372.813305/1000
837/0.543.800.5104.822.23305/1000
737/0.604.240.5105.261.768305/1000
637/0.684.790.5105.811.403305/1000
Click Contact us Get the Best Quote
Company Profile
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 2 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 3 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 4 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 5
Our Products
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 6 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 7
Application
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 8 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 9
Our Overseas Clients
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 10 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 11
Exhibition
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 12 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 13
Certifications
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 14 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 15
FAQ
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
