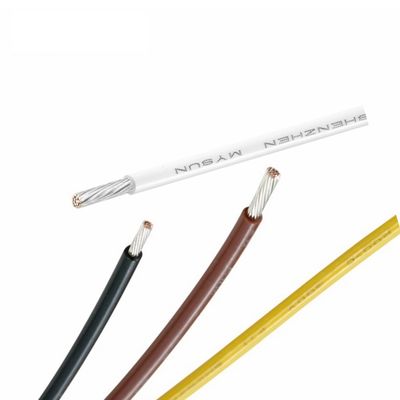

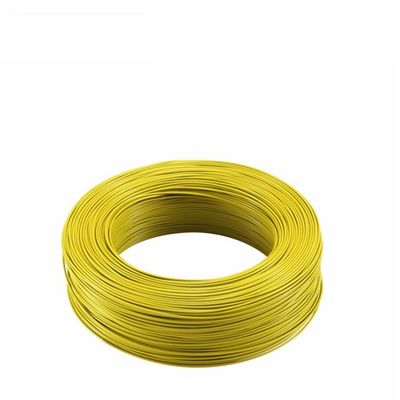

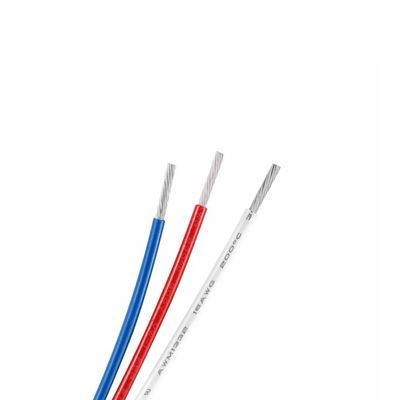

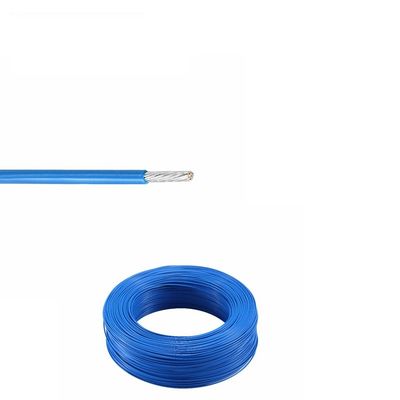

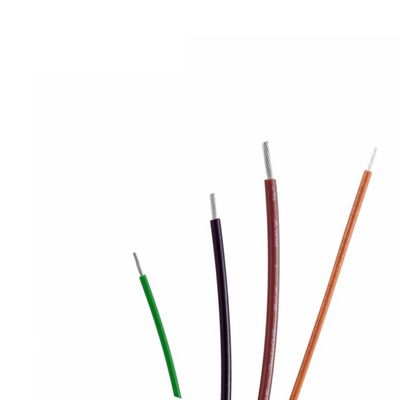

UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications

  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Menşe yeri Guangdong, Çin
Marka adı MYSUN
Model numarası UL10468
Min sipariş miktarı 3050

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İletken malzemesi Kalaylı bakır Çap 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG
Yalıtım malzemesi Lastik Nominal Gerilim 300 V
İletken Tipi Sağlam Şekil Yuvarlak
Sıcaklık 250°C, 150 veya 200°C Gerilim 600V
Yalıtım ETFE Şef Kalaylı Bakır / Gümüş Kaplama Bakır
Birim uzunluğu 305/1000 Maksimum şef direnci 5,64 Ω/KM (12AWG), 8,96 Ω/KM (14AWG), 14,6 Ω/KM (16AWG)
Nominal kalınlık 0,350 mm (12AWG), 0,300 mm (14AWG), 0,330 mm (16AWG) İzolasyon Çapı 3,05 mm (12AWG), 2,55 mm (14AWG), 2,16 mm (16AWG)
Yapı 19/0,475 (12AWG), 19/0,37 (14AWG), 19/0,30 (16AWG)
Vurgulamak

ETFE Insulation Wire

,

UL758 Standard Wire

,

Head Sensor ETFE Wire
Mesaj bırakın
Ürün Açıklaması
UL11628 ETFE Wire 12AWG-26AWG 600V 200°C High Temperature Cable
Premium ETFE Wire Supplier for Fortune 500 Companies
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 0 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 1
Technical Specifications
Size (AWG) Conductor Construction Conductor Diameter (mm) Insulation Thickness (mm) Overall Diameter (mm) Max Conductor Resistance (Ω/KM) Unit Length (M/Ft)
30 7/0.10 0.30 0.270 0.84 381 610/2000
28 7/0.127 0.36 0.270 0.90 239 610/2000
26 19/0.10 0.48 0.270 1.02 150 610/2000
24 19/0.12 0.60 0.270 1.14 94.2 610/2000
22 19/0.15 0.75 0.300 1.35 59.4 305/1000
20 19/0.19 0.95 0.330 1.61 36.7 305/1000
18 19/0.235 1.17 0.330 1.83 23.2 305/1000
16 19/0.30 1.50 0.330 2.16 14.6 305/1000
14 19/0.37 1.85 0.300 2.55 8.96 305/1000
12 19/0.475 2.35 0.350 3.05 5.64 305/1000
Click to Contact Us for the Best Quote
Company Profile
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 2 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 3
Our Product Range
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 4
Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 5
Our Global Clients
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 6
Industry Exhibitions
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 7
Certifications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 8
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
