Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications

  • Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications
  • Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications
  • Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications
  • Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications
  • Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications
  • Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications
Menşe yeri Guangdong, Çin
Marka adı MYSUN
Sertifika UL Certification
Model numarası E239689
Min sipariş miktarı 2000
Fiyat $0.20-0.40

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İletken malzeme Kalaylı bakır tel Çap 14AWG
Yalıtım malzemesi Silikon kauçuk Nominal Voltaj 600V
İletken tipi Kalaylı bakır Şekil Yuvarlak
Sıcaklık 200C Tip Yalıtılmış
Şef Bakır Çekirdek Yalıtım Silikon Kauçuk Yalıtım Kablosu
Malzeme Bakır Ceket Silikon kauçuk
Nominal kalınlık 0.78 mm Çap 2.10 ± 0.1mm ila 20.5 ± 1.0 mm
Yapı 25/0.08 ila 21338/0.08
Vurgulamak

14AWG Silicone Insulated Wire

,

600V Silicone Rubber Wire

,

200C Silicone Electrical Cable
Mesaj bırakın
Ürün Açıklaması
Super Soft Silicone Wire Electric Cable 22-0 AWG UL3512 Flexible Automotive Tin-plated Battery Cable
Premium Silicone Rubber Wire Supplier
Supplies Fortune 500 companies - Top Silicone Rubber Wire Supplier in China.
Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 0 Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 1
UL3512 - 0.08 Super Soft Silicone Wire Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
2625/0.080.480.782.10±0.1
2441/0.080.600.782.20±0.1
2265/0.080.780.782.50±0.1
20104/0.080.950.782.55±0.1
18164/0.081.170.782.80±0.1
16261/0.081.470.783.10±0.1
14415/0.082.100.783.70±0.1
12660/0.082.700.784.30±0.1
101050/0.083.40±0.301.155.50±0.2
91320/0.083.80±0.31.156.10±0.3
81650/0.084.00±0.301.156.30±0.3
72100/0.084.80±0.31.527.90±0.3
62648/0.085.30±0.301.528.30±0.4
53338/0.086.10±0.51.529.20±0.4
44210/0.086.80±0.51.529.90±0.4
35309/0.087.80±0.51.5210.9±0.5
26692/0.088.70±0.51.5211.8±0.5
18842/0.0810.0±0.62.0314.0±0.6
1/010647/0.0811.0±0.702.0315.0±0.6
2/013422/0.0812.3±0.82.0316.3±0.7
3/016921/0.0814.50±0.702.0318.50±0.60
4/021338/0.0815.2±0.82.0320.5±1.0
Contact Us to Get the Most Cost-effective Quote
Product Gallery

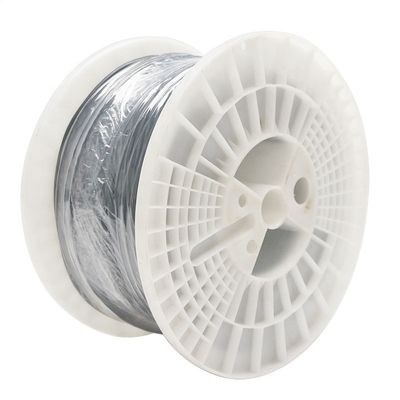

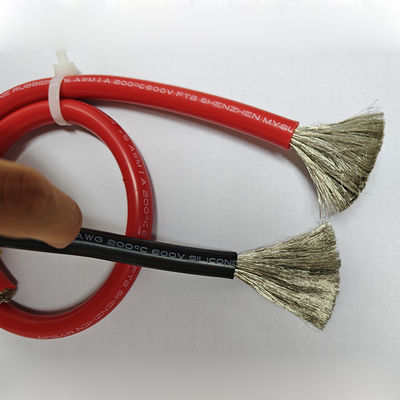

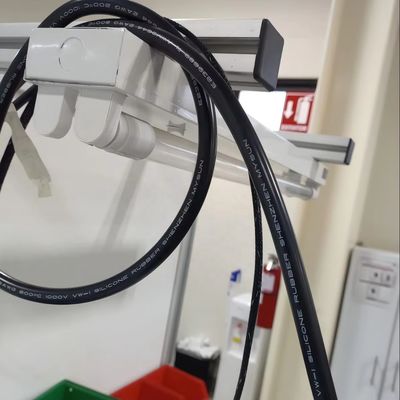

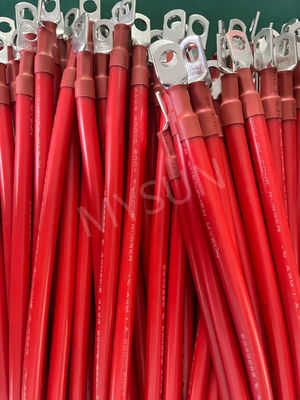

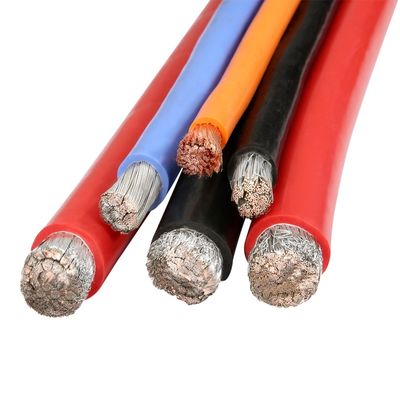

Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 2 Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 3 Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 4 Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 5
Applications
Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 6
Company Profile
Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 7 Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 8
Our Overseas Clients
Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 9
Exhibition
Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 10
Certifications
Super Soft 14AWG Silicone Insulated Wire with 600V Rating and 200C Temperature Resistance for Automotive Applications 11
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment methods: T/T, L/C, PayPal, Western Union, Cash.
