6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications

  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
Menşe yeri Guangdong, Çin
Marka adı Mysun
Model numarası UL4330
Min sipariş miktarı 1

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İletken malzeme Bakır Yalıtım malzemesi Kauçuk, Silikon kauçuk
Nominal Voltaj 300 V İletken tipi Mahsur
Sıcaklık derecesi 150C İletken boyutu 14AWG, 16AWG, 18AWG
Çekirdek sayısı 6, 7, 8 İletken çapı 1.17mm, 1.47mm, 1.89mm
Yalıtım kalınlığı 0.45mm, 0.55mm Maksimum Direnç 5.50-10.00 Ω/km
Birim uzunluğu 305/610 metre Yapı 7/0.39, 7/0.49, 41/0.254
Nominal kalınlık 0.45mm, 0.55mm İzolasyon Çapı ≥0.40mm
Ambalaj uzunluğu 305/610 metre
Vurgulamak

6 Core Silicone Insulated Wire

,

7 Core Multicore Wire

,

8 Core Silicone Rubber Wire
Mesaj bırakın
Ürün Açıklaması
6 Core 7 Core 8 Core 14AWG 16AWG 18AWG UL Standard Silicone Insulated Multicore Wire
Premium Silicone Rubber Wire Supplier
Supplies Fortune 500 companies. Top Silicone Rubber Wire Supplier in China.
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 0 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 1
UL4330 Specifications
Conductor Construction (No./mm) Diameter (mm) Insulation Nominal Thickness (mm) Diameter (mm) Max. Cond. Resistance (Ω/KM) Unit Length (M)/(Ft)
2×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
2×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
2×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
3×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
3×16 7/0.34 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
3×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
4×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 6.00-7.50
4×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.50-8.00
4×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.50-10.00
Multi-core silicone cables can be customized upon request

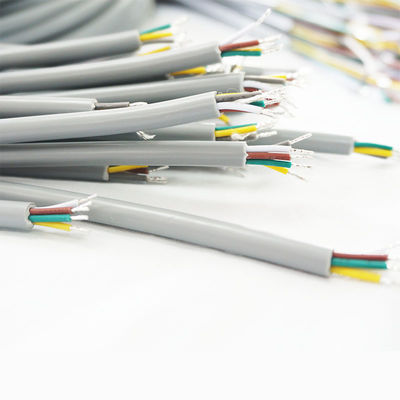

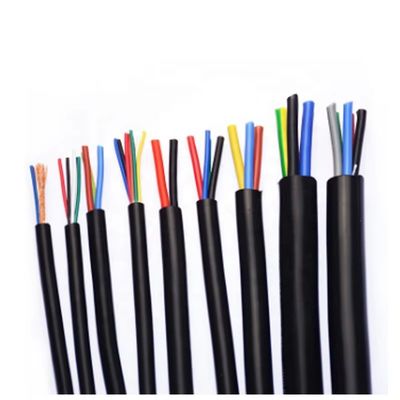

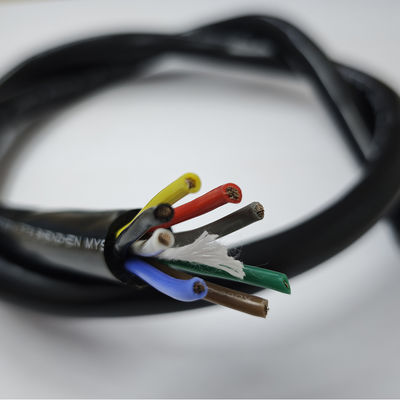

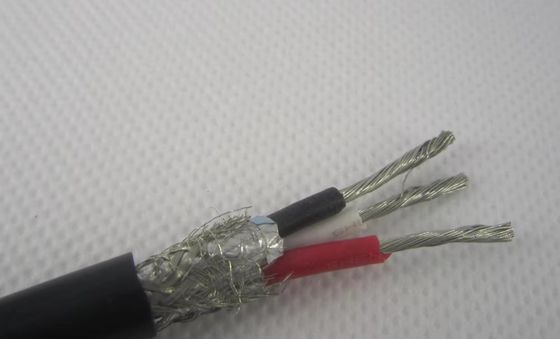

Product Gallery
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 2 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 3 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 4 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 5 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 6 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 7
Company Profile
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 8 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 9
Our Overseas Clients
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 10
Exhibition
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 11
Certifications
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 12
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
