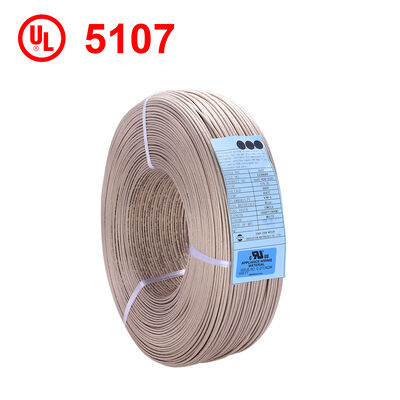

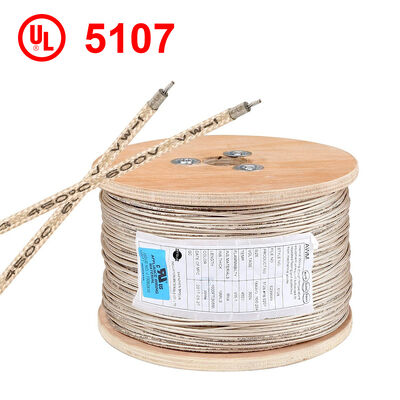

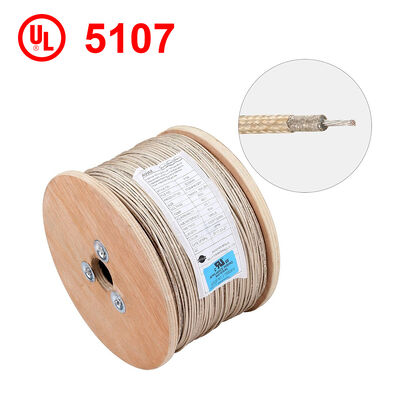

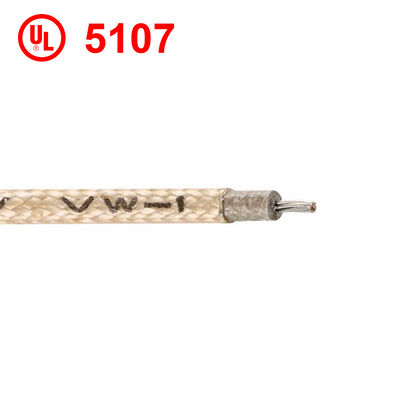

UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
Ürün ayrıntıları
| İletken malzemesi | Kalaylı bakır tel | Çap | 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 22 AWG, 20 AWG |
|---|---|---|---|
| Yalıtım malzemesi | Fiberglas | Nominal Gerilim | 600V |
| İletken Tipi | Kalaylı Bakır | Şekil | Yuvarlak |
| Sıcaklık | 450C | İletken | Bakır Çekirdek |
| Yalıtım | Mika Cam Yalıtım Kablosu | Malzeme | Bakır |
| Ceket | Fiberglas | Mika Kalınlığı | ≥0,635mm, ≥0,762mm |
| Cam kalınlığı | 0,178 mm, 0,381 mm | Birim uzunluğu | 305m (1000ft) |
| Şef inşaatı | 7/0,16 mm, 7/0,20 mm, 7/0,25 mm, 7/0,31 mm, 16/0,254 mm, 26/0,254 mm, 41/0,254 mm, 65/0,254 mm, 35/0 | ||
| Vurgulamak | UL Approval 5107 Mica Insulated Wire,450C Temperature Rating High Temperature Wire,Tinned Copper Conductor Fiberglass Cable |
||
Ürün Açıklaması
UL Approved 5107 Mica Wire - High Temperature Fiberglass Cable
Seeking Country Agents for a Win-Win Partnership
Product Description
Technical Specifications
| SIZE (AWG) | CONSTRUCTION (NO./mm) | DIAMETER (mm) | MICA THICKNESS (mm) | GLASS THICKNESS (mm) | DIAMETER (mm) | UNIT LENGTH(m) (FT) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | ≥0.635 | 0.178 | ≥2.15 | 305(1000) |
| 24 | 7/0.20 | 0.61 | ≥0.635 | 0.178 | ≥2.25 | 305(1000) |
| 22 | 7/0.25 | 0.77 | ≥0.635 | 0.178 | ≥2.40 | 305(1000) |
| 20 | 7/0.31 | 0.94 | ≥0.635 | 0.178 | ≥2.60 | 305(1000) |
| 18 | 16/0.254 | 1.19 | ≥0.635 | 0.178 | ≥2.85 | 305(1000) |
| 16 | 26/0.254 | 1.49 | ≥0.635 | 0.178 | ≥3.15 | 305(1000) |
| 14 | 41/0.254 | 1.87 | ≥0.635 | 0.178 | ≥3.50 | 305(1000) |
| 12 | 65/0.254 | 2.36 | ≥0.635 | 0.178 | ≥4.65 | 305(1000) |
| 10 | 35/0.45 | 3.06 | ≥0.762 | 0.381 | ≥5.35 | 305(1000) |
| 8 | 67/0.40 | 3.75 | ≥0.762 | 0.381 | ≥6.05 | 305(1000) |
| 6 | 266/0.254 | 4.75 | ≥0.762 | 0.381 | ≥7.05 | 305(1000) |
| 4 | 420/0.254 | 6.02 | ≥0.762 | 0.381 | ≥8.25 | 305(1000) |
Our Products
Applications
Company Profile
Certifications
Why Choose Us
- 27 years of experience in manufacturing high temperature cables and wires
- Strict quality inspection under ISO9001, ISO14001, and IATF14969 systems
- Comprehensive product certifications including UL, cUL, CSA, VDE, CCC, ROHS, REACH
- Free samples available from stock inventory
- One-week delivery for standard orders
- Multiple payment methods: T/T, Western Union, and L/C
- Strong R&D team for product design and testing
- Easy one-stop purchasing experience
- Quick after-sale technical advice and guidance
Frequently Asked Questions
Do you accept partial shipment?
Yes, partial shipment is accepted. However, the freight costs will be covered by the customer.
When the goods have quality problems, will you send us replacements?
If cables have quality issues, please provide details including quantity of defective cables, pictures, and labels. After confirmation, replacements will be shipped with your next order.
Can I order cable quantities lower than your MOQ?
We first check inventory availability. If in stock, lower quantities are acceptable. For out-of-stock items, quantities close to our MOQ are acceptable. Significantly lower quantities will be treated as sample orders with slightly higher pricing.
