UL3071 600V Rated Voltage 200°C High Temperature Resistant Flexible Silicone Insulated Fiberglass Braided Heater Element Wire
Ürün ayrıntıları
| İletken malzemesi | Bakır | Çap Seçenekleri | 13AWG, 14AWG, 16AWG, 18AWG |
|---|---|---|---|
| Yalıtım malzemesi | Yaklaşık 7 gün | Nominal Gerilim | 600V |
| İletken Tipi | mahsur kalmış | Menşe Yeri | 200C |
| Yalıtım türü | Silikon Kauçuk | Şef inşaatı | Kalaylı Bakır |
| Birim uzunluğu | 305 metre/rulo | İletken Direnci | 23,2Ω/KM (18AWG), 14,6Ω/KM (16AWG), 8,96Ω/KM (14AWG), 6,97Ω/KM (13AWG) |
| İletken çapı | 1,19 mm (18AWG), 1,49 mm (16AWG), 1,87 mm (14AWG), 2,07 mm (13AWG) | Yalıtım Kalınlığı | 0.93mm. |
| Genel çap | 3,05 mm (18AWG), 3,35 mm (16AWG), 3,73 mm (14AWG), 3,93 mm (13AWG) | Tel tipi | Yalıtımlı |
| Standart | UL3071 | ||
| Vurgulamak | 600V Rated Voltage Fiberglass Braided Wire,200°C High Temperature Resistant Silicone Insulated Wire,Flexible Silicone Insulated Heater Element Wire |
||
Ürün Açıklaması

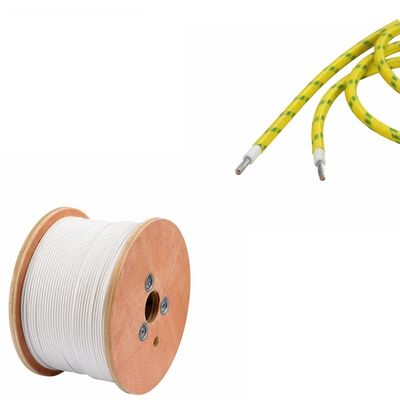

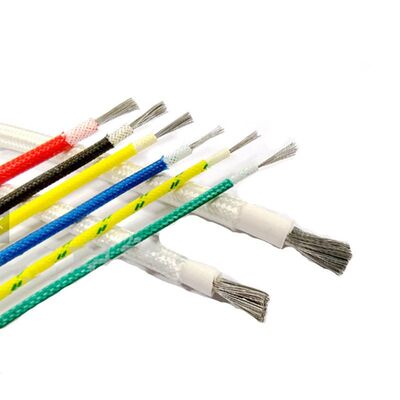

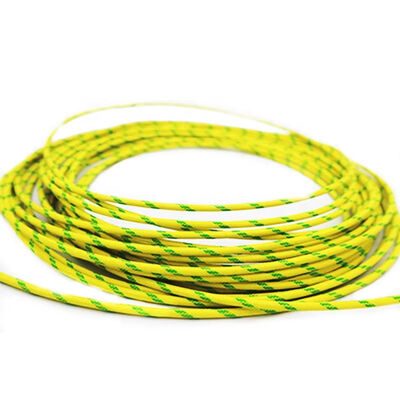

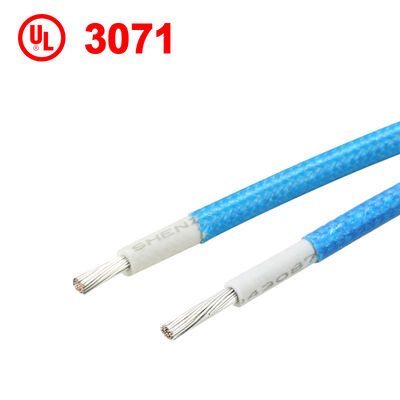

UL3071 High Temperature Resistant Flexible Silicone Insulated Fiberglass Braided Heater Element Wire
Seeking Country Agents for a Win-Win Partnership
Product Overview
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond. Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.93 | 3.35 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.93 | 3.73 | 8.96 | 305/1000 |
| 13 | 50/0.254 | 2.07 | 0.93 | 3.93 | 6.97 | 305/1000 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
