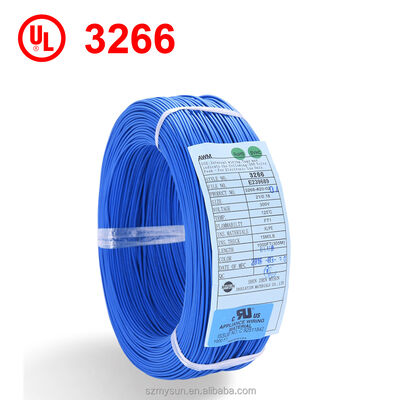

UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage

  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
Menşe yeri Guangdong, Çin
Marka adı MYSUN
Sertifika UL/ROHS/CCC/VDE/CCC/ISO9001:2008
Model numarası UL3266
Min sipariş miktarı 6100
Fiyat €0.1755-0.2633
Ürün ayrıntıları
İletken malzemesi Kalaylı Bakır Çap Seçenekleri 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 0,50mm2, 0,75mm2, 1mm2, 1,5mm2
Yalıtım malzemesi XLPE Nominal Gerilim 300 V
İletken Tipi Sağlam Şekil Yuvarlak
Menşe Yeri 125C Boyut Aralığı 32~10AWG
Mevcut Renkler Kırmızı, mavi, beyaz, sarı, yeşil, kahverengi, siyah, gri Şef inşaatı 30/0,18
Nominal kalınlık 0,39 mm Maksimum şef direnci 3,55 Ω/KM (10AWG)
Birim uzunluğu 305m/1000ft Yalıtım Kalınlığı 0,39 mm
Genel çap 4,05 mm (10AWG)
Vurgulamak

Tinned Copper XLPE Wire

,

125C Rated Temperature Hook Up Wire

,

300V Rated Voltage UL3266 Wire
Mesaj bırakın
Ürün Açıklaması

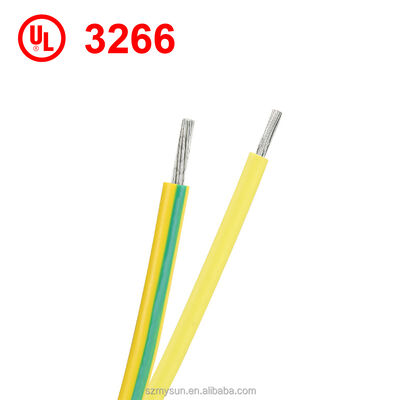

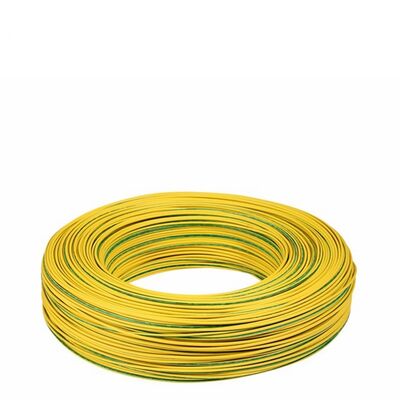

UL3266 Yellow Green 0.75mm² 30/0.18 300V 125°C Tinned Copper XLPE Wire
Premium UL3266 certified wire designed for Battery Energy Storage Systems (BESS) and electrical applications requiring high temperature resistance and reliable performance.
Product Overview
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 0 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 1
Technical Specifications
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 2
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
327/0.080.240.391.02563610/2000
307/0.100.300.391.08381610/2000
287/0.1270.380.391.16239610/2000
267/0.160.480.391.26150610/2000
2411/0.160.600.391.3894.2610/2000
2217/0.160.760.391.5459.4305/1000
2021/0.180.940.391.7236.7305/1000
1816/0.2541.180.391.9623.2305/1000
1626/0.2541.500.392.2814.6305/1000
1441/0.2541.890.392.778.96305/1000
1265/0.2542.370.393.155.64305/1000
10105/0.2543.020.394.053.55305/1000
Customized size according to your needs
Contact Us for Best Quotation

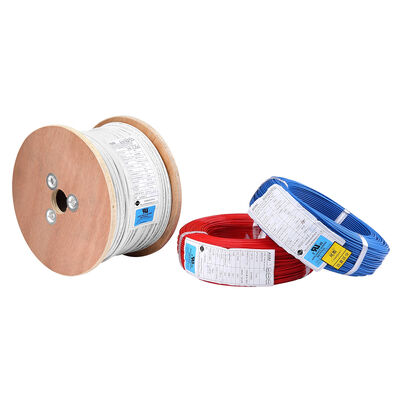

Our Product Range
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 3 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 4
Applications
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 5 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 6

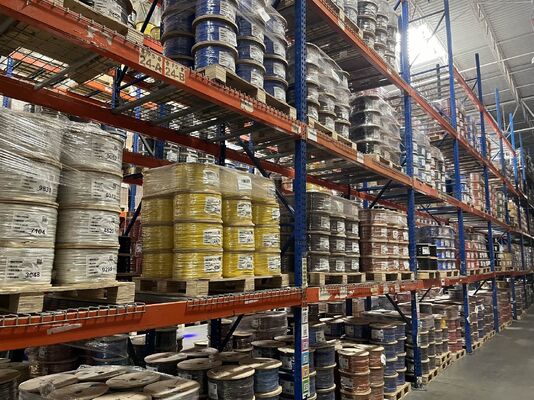

Company Profile
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 7 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 8 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 9 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 10
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08:00). We have public holiday during May 1-3, Oct 1-7 and Chinese New Year holiday. Please email us during our holiday if you have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyer should bear all the shipping costs.
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal.
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
