UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor

  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Menşe yeri Guangdong, Çin
Marka adı MYSUN
Sertifika ROHS/CCC/VDE/CCC/UL
Model numarası UL3122
Min sipariş miktarı 3050
Fiyat $0.18-0.65

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İletken Malzeme Kalaylı bakır Çap 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 1,25mm2, 0,5mm2, 0,75mm2, 1,5mm2
Yalıtım Malzemesi Silikon kauçuk Nominal Gerilim 300V
İletken Tipi mahsur kalmış Sıcaklık Değeri 200C
Birim uzunluğu 305 metre/rulo Maksimum şef direnci 143 Ω/KM (26 AWG), 89,3 Ω/KM (24 AWG), 56,4 Ω/KM (22 AWG), 35,2 Ω/KM (20 AWG), 22,2 Ω/KM (18 AWG), 1
Yalıtım kalınlığı 0,60 mm (26 AWG), 0,65 mm (24 AWG) İletken çapı 0,48 mm (26 AWG), 0,61 mm (24 AWG), 0,77 mm (22 AWG), 0,94 mm (20 AWG), 1,19 mm (18 AWG), 1,49 mm (1
Genel çap 1,68 mm (26 AWG), 1,81 mm (24 AWG), 1,97 mm (22 AWG), 2,14 mm (20 AWG), 2,39 mm (18 AWG), 2,69 mm (1 Şef inşaatı 7/0,16 mm (26 AWG), 7/0,20 mm (24 AWG), 7/0,254 mm (22 AWG), 7/0,31 mm (20 AWG), 7/0,39 mm (18 AWG),
İplik sayısı 7 iplikçik (26-16 AWG), 1 iplikçik (24-16 AWG), 11 iplikçik (24 AWG), 17 iplikçik (22 AWG), 26 iplik Çapraz kesim alanı 0,30mm², 0,50mm², 0,75mm², 1,00mm², 1,25mm²
İplik çapı 0,16 mm (26-18 AWG), 0,18 mm (0,30-1,25 mm²)
Vurgulamak

300V Rated Voltage Fiberglass Braided Wire

,

200C High Temperature Silicone Rubber Wire

,

Tinned Copper Conductor UL3122 Wire
Mesaj bırakın
Ürün Açıklaması

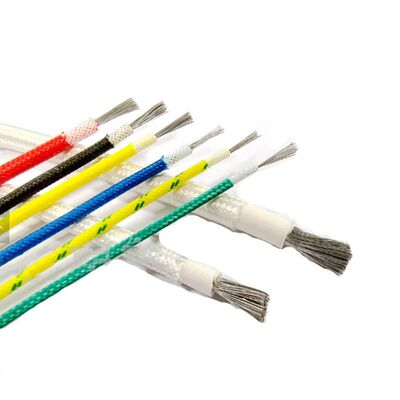

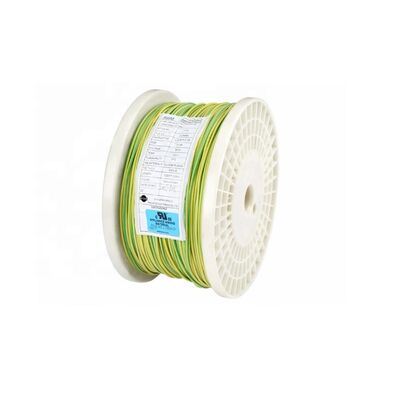

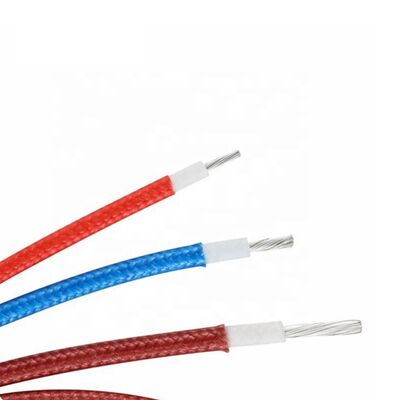

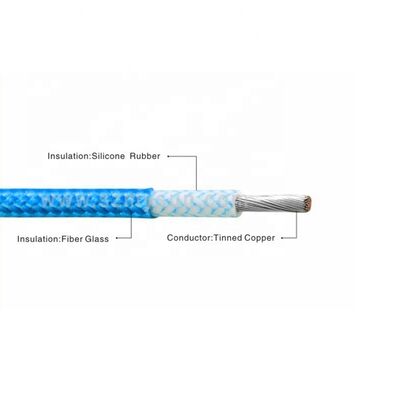

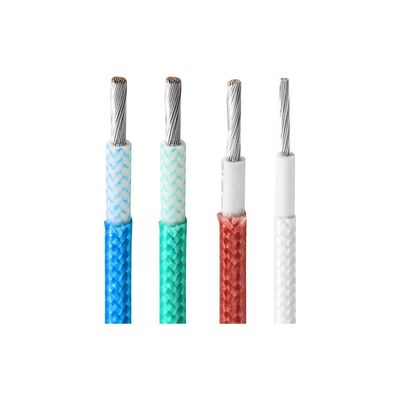

UL3122 300V 200°C Tinned Copper High Temperature Silicone Rubber Fiberglass Braided Motor Wire
Seeking Country Agents for a Win-Win Partnership
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 0
Product Specifications
Conductor Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
267/0.160.480.601.68143305/1000
247/0.200.611.8189.3
227/0.2540.771.9756.4
207/0.310.942.1435.2
187/0.391.192.3922.2
167/0.491.492.6914
241/0.500.500.651.8089.3305/1000
221/0.650.651.9556.4
201/0.810.812.1135.2
181/1.021.022.3222.2
161/1.201.202.5014
2411/0.160.610.601.8189.3305/1000
2217/0.160.761.9656.4
2026/0.160.942.1435.2
1841/0.161.182.3822.2
1626/0.2541.492.6914
0.30mm²12/0.180.710.601.9159.78305/1000
0.50mm²20/0.180.922.1240.1
0.75mm²30/0.181.132.3326.7
1.00mm²40/0.181.312.5120
1.25mm²50/0.181.462.6614.35
Click here to contact us for a competitive quote
Company Profile
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 1 UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 2
Our Products
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 3
Applications
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 4
Our Overseas Clients
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 5
Exhibition
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 6
Certifications
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 7
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
