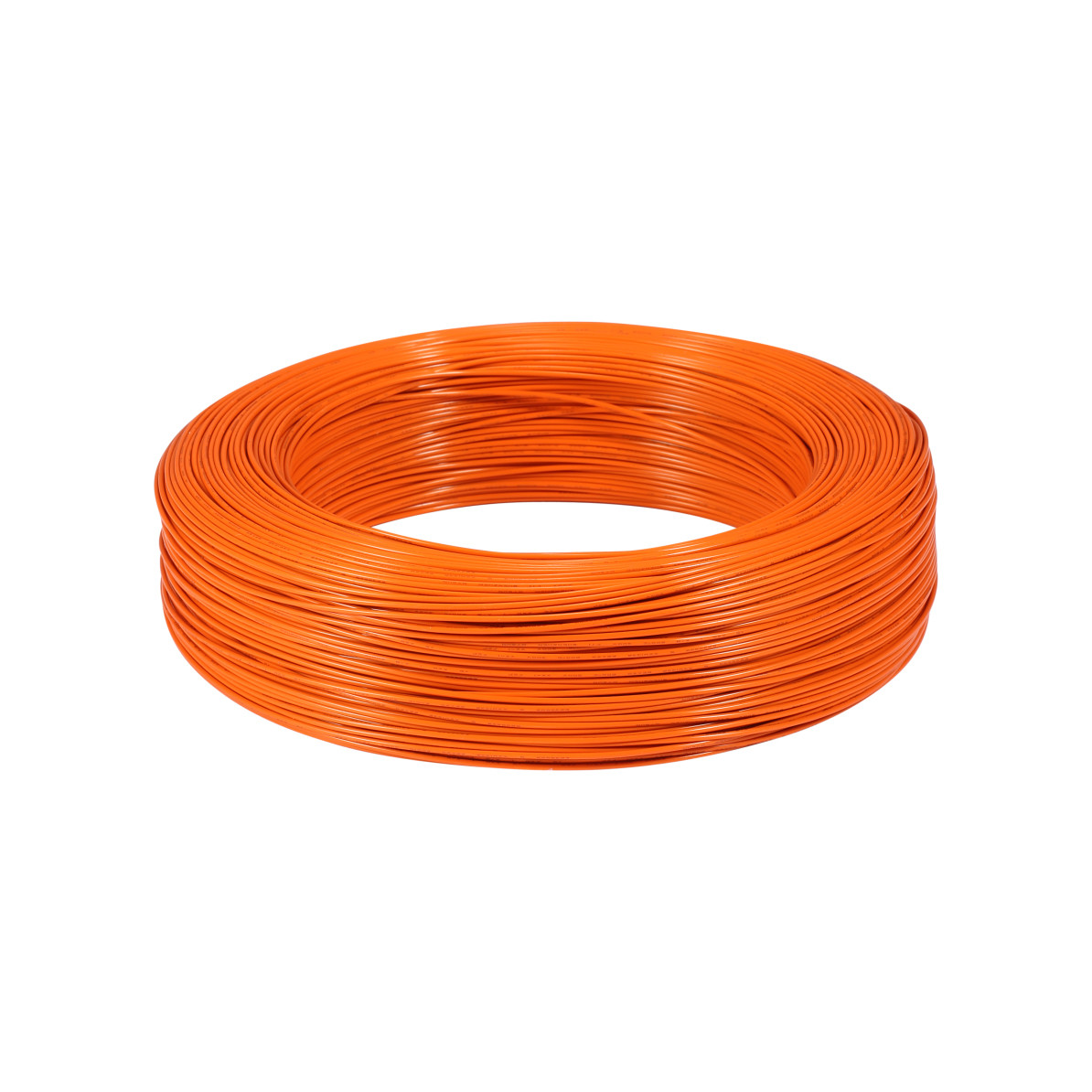

UL3265 XLPE Insulated Wire 18 AWG 16/0.254 For Industrial Power
| Menşe yeri | Guangdong，China |
|---|---|
| Marka adı | Mysun |
| Model numarası | UL3265 |
| Min sipariş miktarı | 3050meters |
| Fiyat | 0.06~0.2681USD per M |
| Ambalaj bilgileri | Standard packge: cardboard box Accept custom-made. |
| Teslim süresi | 7-15 working day |
| Ödeme koşulları | T/T, Western Union, MoneyGram |
| Yetenek temini | 500000 Meters per Day |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Sertifika | ROHS/CCC/VDE/CCC/ISO9001:2008 | Conductor Type | Stranded |
|---|---|---|---|
| Color | Blue | Usage | Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc |
| Rated Voltage | 150V | Rated Temperature | 125C |
| Size | 18AWG | Conductor | Tinned Copper |
| Standard | UL758 | Insulation | XLPE |
| Type | insulated | Max.Cond Resistance | 23.2Ω/KM |
| Construction | 16/0.254 |
Ürün Açıklaması
UL3265 XLPE wires and cables 18awg 16/0.254 for industrial power wires
UL 3265 Specifications:
Nominal voltage:150V
Temperature range:125℃
Standard: UL3265
Insulation: xlpe
Conductor: Tinner copper
Product features:
insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Product Parameter
Applications:
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
| CONDUCTOR | INSULATION | MAX.COND RESISTANCE | UNIT LENGTH(M)(Ft) | |||
| SIZE | CONSTRUCTION (NO./mm) | DIAMETER (mm) | NOMINAL THICKNESS (mm) | DIAMETER | (Ω/KM) | |
| (AWG) | (mm) | |||||
| 32 | 7/0.08 | 0.24 | 0.26 | 0.76 | 563 | 610(2000) |
| 30 | 7/0.10 | 0.3 | 0.82 | 361 | ||
| 28 | 7/0.127 | 0.38 | 0.9 | 227 | ||
| 26 | 7/0.16 | 0.48 | 1 | 143 | 305(1000) | |
| 24 | 11/0.16 | 0.6 | 1.12 | 89.3 | ||
| 22 | 17/0.16 | 0.76 | 1.27 | 56.4 | ||
| 20 | 21/0.18 | 0.94 | 1.46 | 35.2 | ||
| 18 | 16/0.254 | 1.18 | 1.7 | 22.2 | ||
| 16 | 26/0.254 | 1.5 | 2.02 | 14 | ||
Our Product
Product Description
Package & Delivery
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
