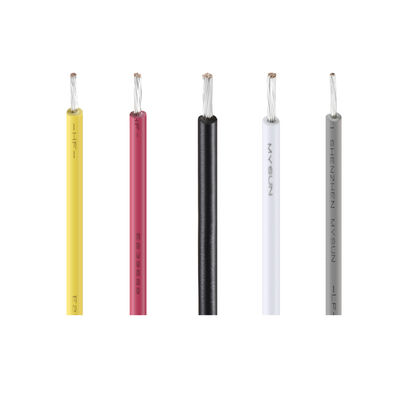

305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance

  • 305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance
  • 305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance
  • 305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance
  • 305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance
  • 305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance
  • 305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance
Menşe yeri Guangdong，China
Marka adı Mysun
Model numarası UL3271
Min sipariş miktarı 3050meters
Fiyat 0.06~0.287USD per M
Ambalaj bilgileri Standard packge: cardboard box Accept custom-made.
Teslim süresi 7-15 working day
Ödeme koşulları T/T, Western Union, MoneyGram
Yetenek temini 500000 Meters per Day

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Sertifika ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Blue Usage Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc
Rated Voltage 600V Rated Temperature 125C
Size 24AWG Conductor Tinned Copper
Standard UL758 Insulation XLPE
Type insulated Max.Cond Resistance 94.2Ω/KM
Construction 11/0.16 Meter 305M/Roll
Mesaj bırakın
Ürün Açıklaması

Power wries and cables wholesale in dubai XLPE UL standard wires



 UL3271 Specifications:

Nominal voltage:600-750V

Temperature range:125℃

Standard: UL3271

Insulation: xlpe

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor
Insulation
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
30
7/0.10
0.30








0.78
1.86
381
305/1000
28
7/0.127
0.38
1.94
239
26
7/0.16
0.48
2.04
150
24
11/0.16
0.60
2.16
94.2
22
17/0.16
0.76
2.32
59.4
20
21/0.18
0.94
2.49
36.7
18
16/0.254
1.18
2.73
23.2
16
26/0.254
1.50
3.06
14.6
14
41/0.254
1.89
3.45
8.96
12
65/0.254
2.37
3.93
5.64
10
105/0.254
3.02
4.58
3.55
9
133/0.254
3.36
4.92
2.82
8
133/0.28
3.75
1.15
6.05
2.23
100/328
6
84/0.45
4.79
7.09
1.41
4
133/0.45
6.02
8.32
0.89
2
212/0.45
7.60
1.15
10.66
0.56

305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance 0

305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance 1




Our Product



305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance 2



Product Description



305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance 3

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance 4







Company Introduction



305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance 5

305M/Roll Electrical XLPE Wire 24AWG 600V 125C For Household Appliance 6
